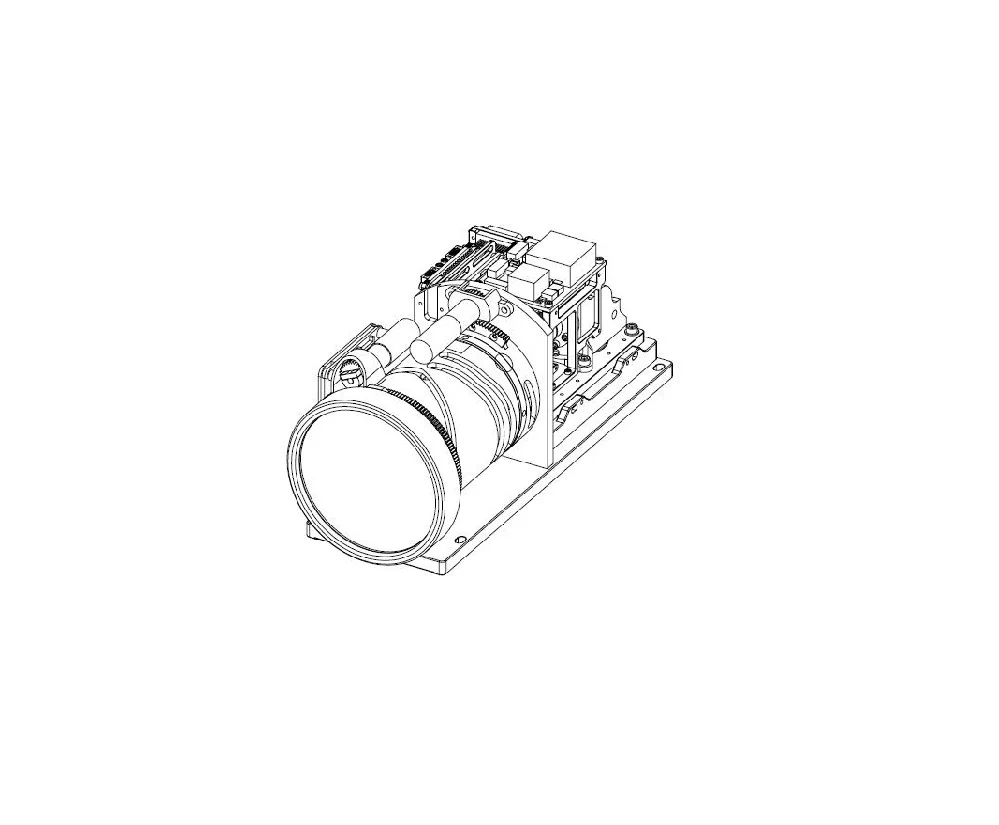

Model: MC640
Digital Detail Enhancement
Image Contrast Enhancement
Image Filtering and De-noising
Image Integration: Auto/manual Modification on the integration time
Internal Sync or External Sync
Single and Two-point NUC, the correction parameters can be fixed
Auto/Manual Dead pixels replacement
Provides test images, such as gray level gradient, stripe target and checkerboard
Analog image rollover, mirroring, freeze and digital zooming
Crosshair overlay/remove
Operating Temperature: -40~+60℃
Storage Temperature: -55~+70℃
Digital Video Output: CameraLink@14bit (16bit), CameraLink@8bit
Analog Video Output: PAL (NTSC), upon the frame rate
Communication Interface: RS422
External Sync: Differential LVDS
Power Supply: 28V DC (nominal), 18~36V Dc
Want more information on this product?
SpecificationDownload PDF file.
Contact Specialist for a quote
Image Resolution: 640×512
Spectral Range: 3~5 um
Pitch Size: 15um
F number: 2, 3 or 4
NETD: ≤ 25mK or Detector Typical NETD+5mK
Max Frame Rate of Image Output: 100 Hz
Video Output Interfaces: Camera Link (digital) and Analog video, others can be customized
Image Output Type: 8-bit, 14-bit and 16-bit selectable
