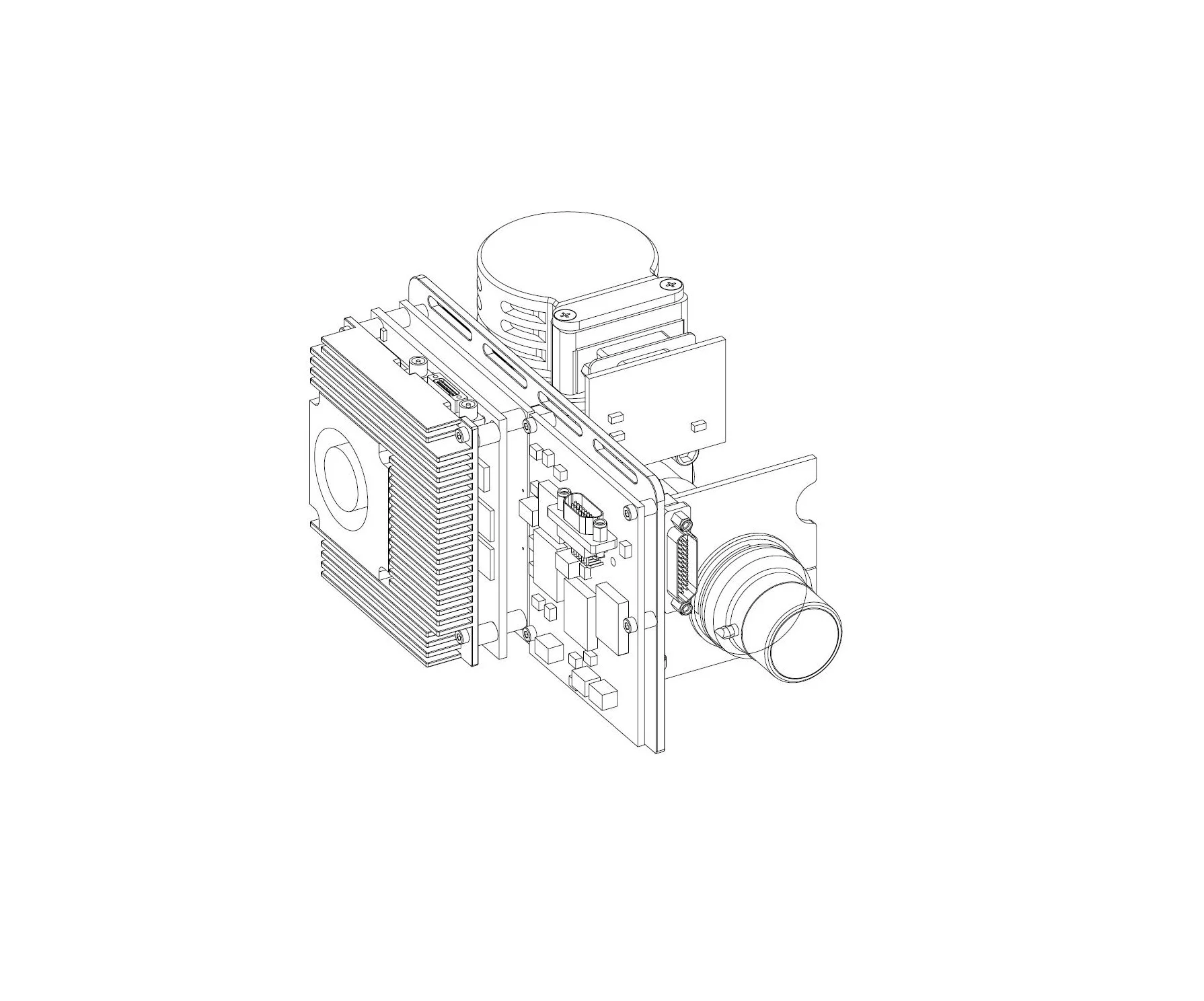

SLC64 LWIR cooled 640×512 Infrared Imaging Module

Model: SLC64

• Video Output Interfaces: Camera Link and SDI (digital), others can be customized
• Image Output Type: 8-bitor 14-bit electable
• Power Consumption: ≤20W(steady-state), ≤30W (during cooling down)
• Cooling Down Time: ≤8 min (room temperature)
• Image Polarity: White Hot/ Black Hot
• Digital Detail Enhancement
• Image Contrast Enhancement
• Image Filtering and De-noising
• Image Integration: Auto/manual Modification on the integration time
• Internal Sync or External Sync
• Single and Two-point NUC, the correction parameters can be fixed
• Auto/Manual Dead pixels replacement
• Provides test images, such as gray level gradient, stripe target and checkerboard
• Analog image rollover, mirroring, freeze and digital zooming
• Crosshair overlay/remove
• Operating Temperature: -40~+60℃
• Storage Temperature: -55~+70℃
• Humidity: 0%~80%RH
