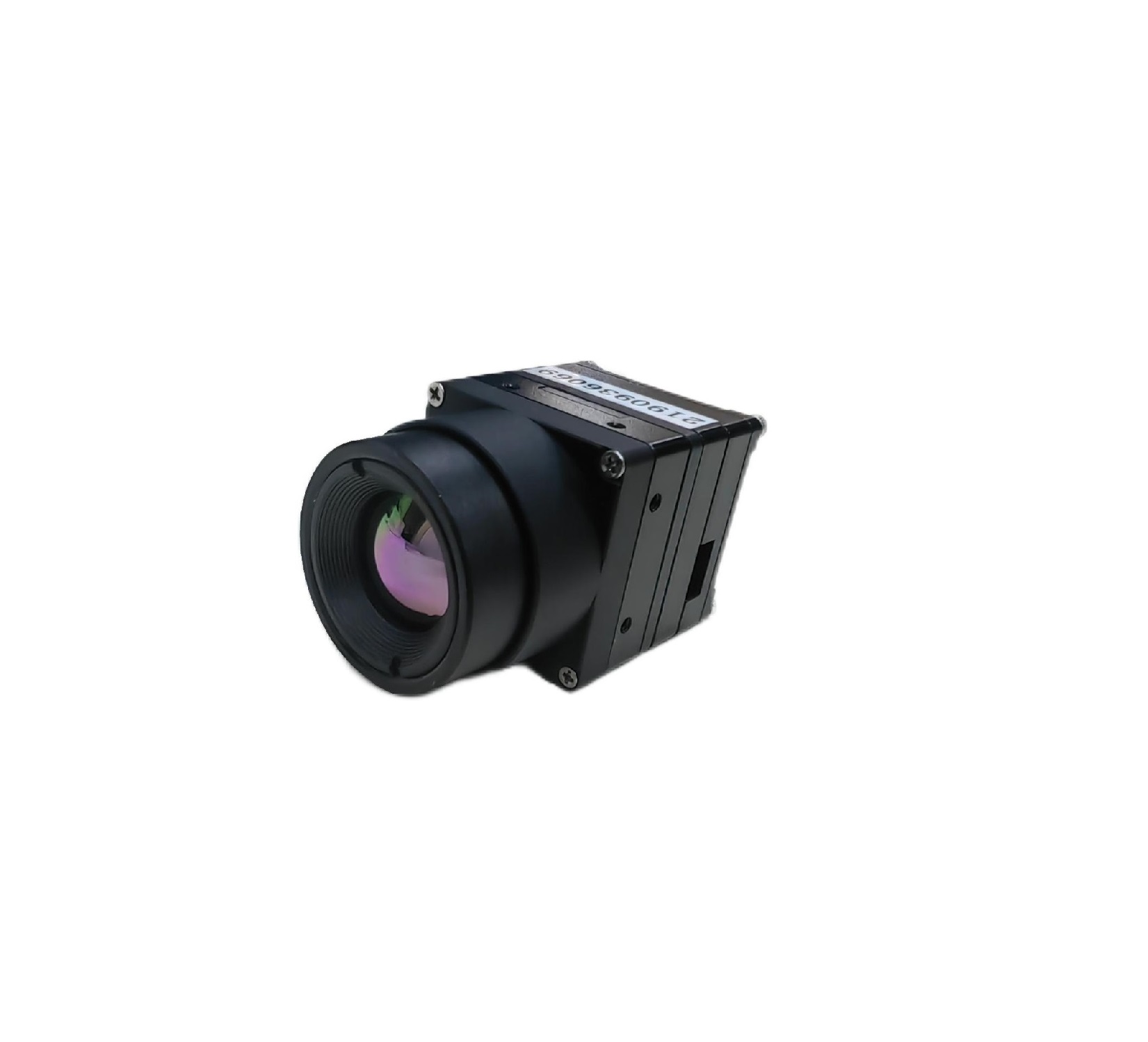

X6412LFX 640X512 12UM,LWIR Infrared Core cameralink lvds sdi ethernet optional
,

X6412LFX 640X512 12UM,LWIR Infrared Core cameralink lvds sdi ethernet optional

Model: X6412LFX
Resolution: 640X512,12um

we can also supplier:

uncooled 384×288,12um /640×512,12um /1280×1024,12um /384×288,17um /640×512,17um thermal module.

frame rate:  25hz/30hz/50hz

digital interface:

00:no

01:BT601

02:BT656

03:BT1120

04: reserved

05:Cameralink

06:CML

07:Ethernenet

08:LVDS

09:LVCMOS

10:SDI



analog video interface:

0:no

A:AHD

N:NTSC

P:PAL

Serial port

0:TTL

1:RS232

2:RS422

3:RS485



also customize:

External synchronization:  0:no /S:yes

features:

1. brightness adjustment;

2. contrast adjustment;

3. enhancement adjustment;

4. Noise reduction adjustment;

5. digital zoom: 1-4x(step 1);

6. Upgrade with serial port;

7. mirror image: left/right, up/down;

8. contrast adjustment: auto(default)/manual;

9. image correction: auto/manual/background corrections;

10. External synchronization: can be customized;

11. Picture in picture: can be customized;

12. Hotspot tracking: can be customized;

13. Pseudo color: black hot/white hot(default), other pseudo colors can be customized;

14. Reticle: hidden(default), can be customized as shown/moving; Want more information on this product?

Specification
Download PDF file.

Contact
Specialist for a quote

Categories: , Tags: , , , , , , ,

The uncooled infrared module developed by xxx adopts the VOX uncooled infrared focal plane detector with ceramic encapsulated made domestically.

It features small size, light weight, low power consumption, clear image, and high sensitivity.

It can be widely used in optoelectronic pods, automobile applications, security monitoring, firefighting and rescue, investigation, border and coastal defense, maritime affairs, electrical engineering, electronic industry, scientific research and other fields.

Development of infrared thermal imaging products using this product can be shortened with less difficulty of secondary development.
